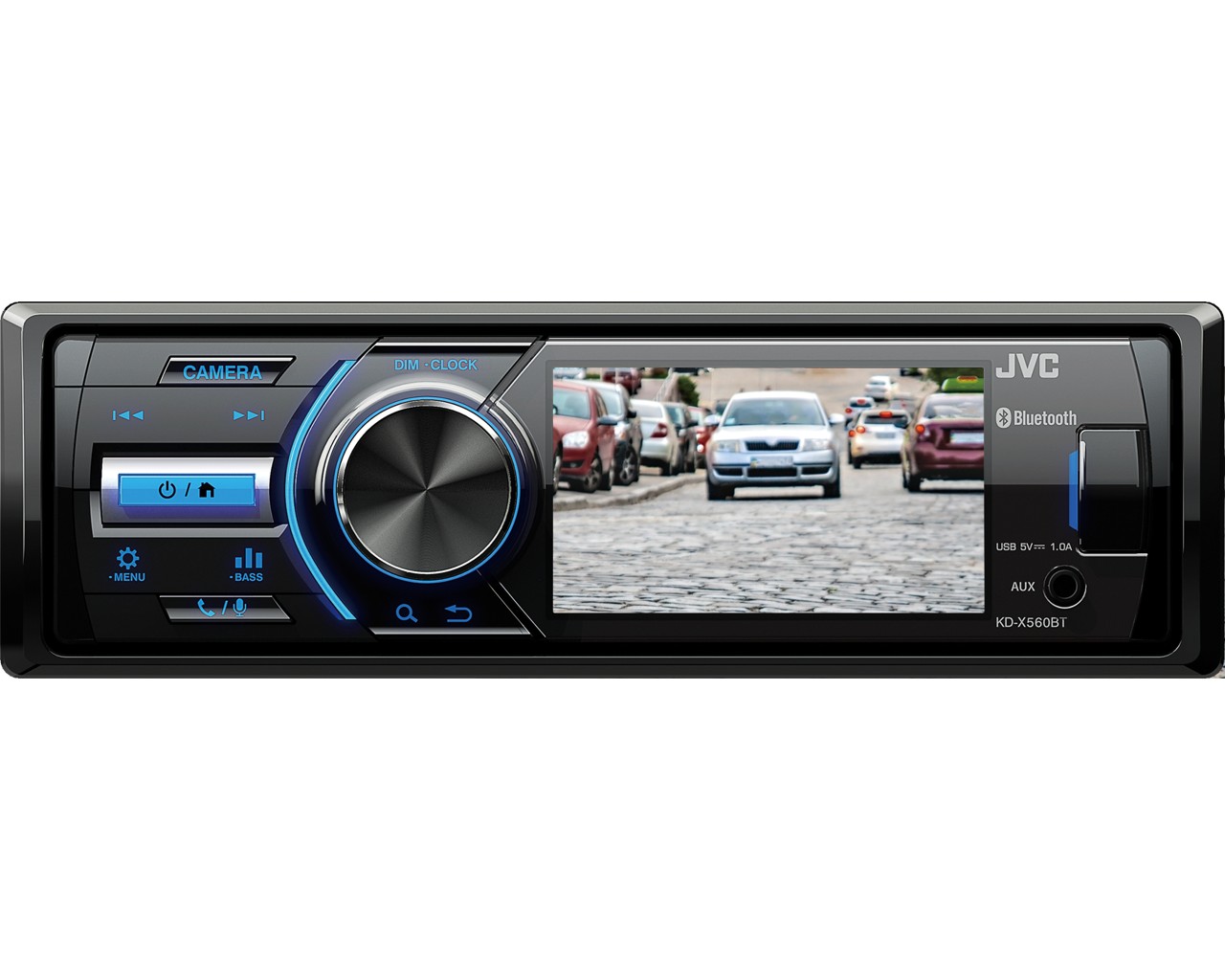

KD-X560BT – Digital Media Receiver
Χαρακτηριστικά
- Ήχος DSP με DTA
- Έλεγχος μέσω χειριστήριων τιμονιού
- Είσοδος κάμερας πίσω πλευράς προβολής
- Αναπαραγωγή πολυμέσων: MP3 / WMA / m4a, AAC / WAV / FLAC / Ogg / JPEG, PNG, BMP
- Συμβατό με iPod / iPhone
- Οθόνη QVGA 3 ιντσών
- 13-Preset EQ
- 3 Pre-outs
- Είσοδος AUX (μπροστινή / μίνι υποδοχή)
- Μπροστά USB
- Bluetooth Audiostreaming A2DP και AVRCP 1.5
- Μορφές αναπαραγωγής βίντεο: MPEG1 / 2/4, H264 και MKV
- Ασύρματη τεχνολογία Bluetooth (R) (Ενσωματωμένη)
- Dimmer control
- Short Body
Monitor
- Screen Size
- 3.0″ 16:9 QVGA
- Key Illumination Color
- Blue
- Multilingual Display
- Yes
Media Playback
- MP3 Compatible with Tag
- Yes
- WMA Compatible with Tag
- Yes
- WAV Compatible with Tag
- Yes ( Up to 96kHz/24bit )
- AAC Compatible with Tag
- Yes
- FLAC Compatible with Tag
- Yes ( Up to 96kHz/24bit )
- H.264 Compatible
- Yes
- MPEG 1/2 Compatible
- Yes
- MPEG 4 Compatible
- Yes
- AVI/MKV Compatible
- Yes
- JPEG File Playback
- Yes
- PNG File Playback
- Yes
- BMP File Playback
- Yes
Bluetooth Control
- Built-In Bluetooth
- Yes (Version 3.0, Wired-Mic included)
- Hands Free Call
- Yes (HFP1.5 Wideband Speech)
- Audio Streaming & Control (A2DP, AVRCP)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
Android Control
- Android Music Playback
- Yes (via Bluetooth(R))
iPod/iPhone Control
- iPod/iPhone Music Playback
- Yes (via USB or Bluetooth(R))
USB
- MP3/WMA Compatible with ID3 Tag/WMA Tag
- Yes
- WAV Compatible with Tag
- Yes
- AAC Compatible with Tag
- Yes
- AVI/MKV Compatible
- Yes
- JPEG/MPEG 1/2 Compatible
- Yes
- MPEG-4 Compatible
- Yes
- USB Port
- x 1 (High speed)
- Position
- Front
- USB Power Supply
- Yes (1.0A)
Radio Tuner
- Radio Data System
- Yes
- Preset Stations
- 30 (FM:15, AM:15)
- FM
- Frequency Range
- 87.5 – 108.0MHz
- AM
- Frequency Range
- (MW) 531 – 1,611kHz, (LW) 153 – 279kHz
Audio
- Maximum Power Output (Front & Rear)
- 45W x 4
- Full Bandwidth Power (Front & Rear)
- 16W x 4
- EQ
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (9-Preset)
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- Bass Boost
- Yes
Inputs and Outputs
- Pre-output Level/Impedance
- 2.0V / 10k ohms
- Front AUX Input
- Yes
- Rear view camera Input
- Yes
- Line Output Terminals
- 3 Pairs (Front + Rear + Subwoofer)
General
- Short Body
- Yes
- Wireless Remote Control
- Ready (RM-RK258 required)
- Steering Remote Control Ready
- Yes
- ISO Connector
- Yes
- Dimensions (W x H x D)
- Installation Size
- 182 x 52 x 117 (mm)
- Unit weight in individual package
- 1.18kg
- Weight
- 0.75kg : inlcuding sleeve
