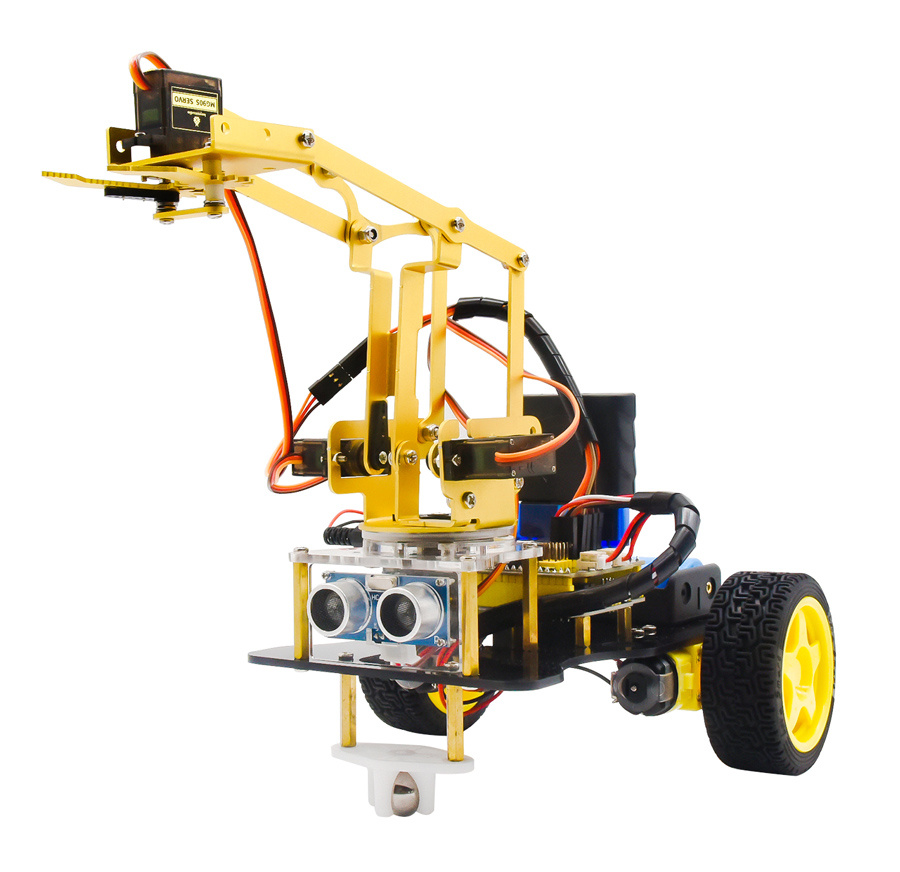

KEYESTUDIO 4DOF mechanical robot arm car kit KS0520, για Arduino
Το 4DOF mechanical robot arm car kit εκμάθησης της Keyestudio σας δίνει την δυνατότητα να κατασκευάσετε το δικό σας μηχανικό ρομποτικό αυτοκίνητο με βραχίονα μέσω της ολοκλήρωσης πολλών δημιουργικών projects.
Διαθέτει λειτουργίες cross maze, ultrasonic following, αποφυγή εμποδίων, memory και ο έλεγχος του μπορεί να γίνει ασύρματα από PS2 Joypad ή από εφαρμογή για smartphone μέσω Bluetooth.
Ο έλεγχος από smartphone γίνεται μέσω της εφαρμογής Keyes Arm Car για Android και iOS.
-3 in 1 Design: Smart car, mechanical arm, mechanical robot arm car
-Multi-purpose Function: obstacle avoidance, follow, IR remote control and automatic convey
-Easy to Build: no soldering circuit required
-High Tenacity: high performance car baseplate and metal mechanical arm
-High Extension: expand other sensors and modules through motor driver shield
-Multiple Controls: PS2 joypad control, full automatic and App control (iOS and Android system)
-Basic Programming: C language code learning
Οδηγίες χρήσης:
https://www.data-media.gr/files/KS0520.pdf
Kit projects
Project 1: LED Light
Project 2: Adjust LED Brightness
Project 3: Servo Control
Project 4: Ultrasonic Sensor
Project 5: Bluetooth Remote Control
Project 6: Motor Driving and Speed Control
Project 7: PS2 Joypad Control
Project 8: Smart Car
Project 9: Ultrasonic Follow Robot
Project 10: Ultrasonic Avoiding Robot
Project 11: Bluetooth Control Car
Project 12: Speed Control Robot
Project 13: PS2 Joypad Contol
Project 14: Adjust Servo and Install Robot Arm
Project 15: App Control Robot
Project 16: Memory Carry Function
Project 17: PS2 Joypad Control
Project 18: Memory Fuction
Project 19: PS2 Joypad Control Car
Project 20: Mechanical Arm Smart Car
Τεχνικά χαρακτηριστικά
Working voltage: 5v
Input voltage: 7-12V
Maximum output current: 3A
Maximum power dissipation: 25W (T=75°C)
Motor speed: 5V 63 rpm / min
Motor drive form: TB6612 drive
Ultrasonic sensing angle: <15 degrees
Ultrasonic detection distance: 2cm-400cm
Bluetooth remote control distance: 20-50 meters (measured)
Bluetooth APP control: support Android and iOS system
Συμβατή εφαρμογή: Keyes Arm Car
Περιεχόμενα συσκευασίας
KEYESTUDIO V4.0 Development Board (Compatible Arduino UNO)
USB Cable AM/BM Blue OD:5.0 L=1m
HC-SR04 Ultrasonic Sensor
KEYESTUDIO TB6612FNG Motor/Servo Drive Shield
KEYESTUDIO Red LED Module
PS2 Wireless 2.4G Game Controller
Baseplate for Ultrasonic Sensor/Servo
Car Baseplate T=3.0 KS0520
Bearing Cap
15 pcs Aluminium Alloy Robot Arm
18650 2-Slot Battery Holder with Lead
2x KEYESTUDIO Car Wheels
2x 4.5V 200rpm Motor
AXK Plain Bearing
Plain Bearing
Universal Wheel
2x Fixed Mount 23x15x5MM
4x M3*30MM Round Head Screws
4x MG90S 14G Servo
8x M3*10MM Dual-pass Copper Bush
2x M3*25MM Dual-pass Copper Bush
4x M3*30MM Dual-pass Copper Bush
26x M3*6MM Round Head Nuts
21x M3*8MM Round Head Screws
2x M2.5*10MM Round Head Screws
3x M3*10MM Flat Head Screws
4x M2*8MM Round Head Screws
6x M2*12MM Round Head Screws
10x M2 Nickel Plate Nut
12x M1.2*4MM Self-tapping Round Head Screws
12x M3 Nickel Plated Nut
2x M2.5*20MM Round Head Screws
2x M2.5 Nickel Plated Self-locking Nuts
14x M3 Nickel Plated Self-locking Nuts
6x White Insulator
10x Black Ties 3*100MM
2x 20cm 2.54 3pin F-F Dupont Line Eco-friendly
M-F 15CM/40P/2.54/10 Dupont Line 0.25 qty
HX-2.54 4P to Dupont Line 26AWG 200MM
3*40MM Red and Black Screwdriver
2.0*40MM Purple and Black Screwdriver
M2+M3 Wrench
KEYESTUDIO HM-10 Bluetooth-4.0 V3 Module
Winding Pipe
6-Slot AA Battery Holder with 15CM Lead
6x M1.4 Nickel Plated Nuts
6x M1.4*8MM Round Head Screw
Σημείωση
Το προϊόν είναι εξειδικευμένο και απαιτούνται τεχνικές γνώσεις.
Η εγγύηση δεν καλύπτει βλάβες από λάθος συνδεσμολογία.
